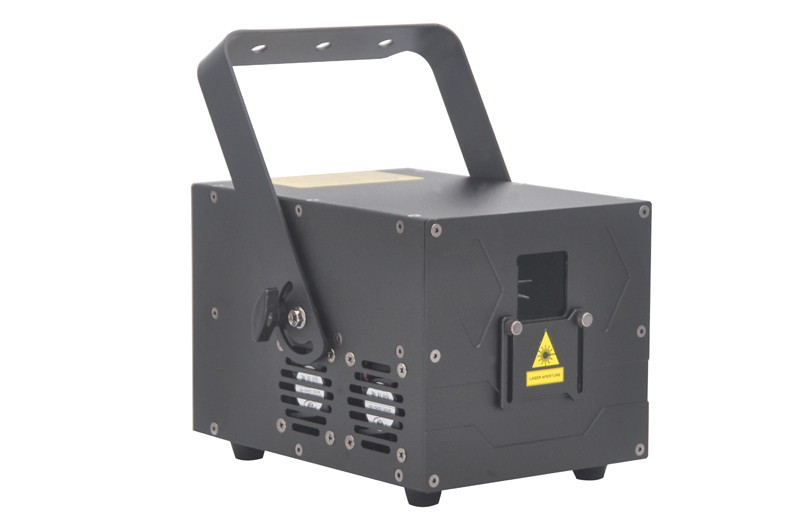

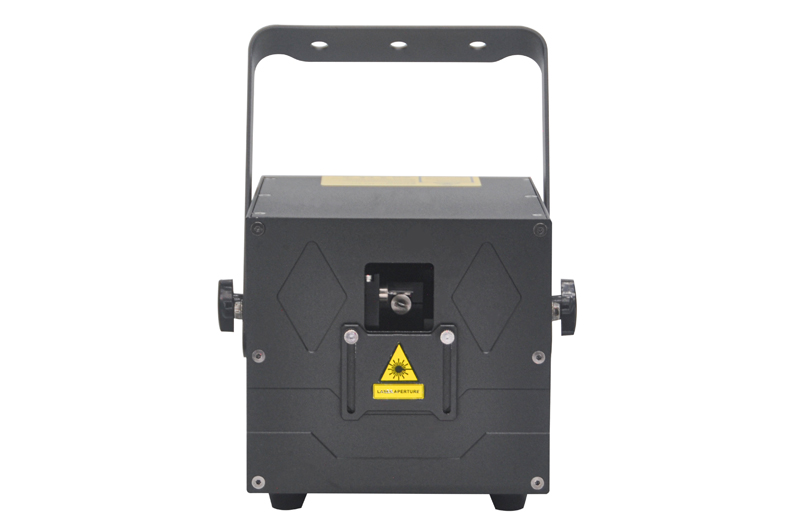

AB100RGB Bluetooth Laser

Features

1. AB100RGB is a powerful Bluetooth-controlled animation laser light. Users can only use a mobile phone or a tablet PC to finish complicated laser shows easily. Compared with traditional laser control methods, it is more cost-effective, more convenient to use, and easier to operate.

2. Built-in basic geometric patterns. Users can choose one or more patterns to play and can set different colors for different graphics as well as overall multiple action superposition effects and other functions.

3. Text input function. Users can use this function to realize personalized text content output easily. You can choose the font, spacing, size, direction of the text and other functions in the effect frame.

4. Painting (outline) function. Users can use this function to outline things or draw their favorite content, no matter the animation effect or text effect, etc.

5. Powerful color effect setting. The software presets more than 200 colors and color segment effects. Users can choose different colors or color segments of text animation content according to their needs.

6. Powerful effect setting. Customers can choose functions like up, down, left and right movement, rotation, zoom, drawing, wave, strobe and other changeable functions and speeds.

7. Customers can set up different folders as needed, so that different types of programs can be stored in different folders. And the folder contents can be edited and classified according to different scenes and added to the playlist for specified order of play.

8. For the popular wedding show in this year, using our wireless Bluetooth function controlled laser device will have incomparable advantages. Customers can choose different circle or square patterns, draw hearts, type text, select colors and other functions according to actual needs, so as to achieve stronger interactivity and more flexible control methods. Laser lights that are not controlled by mobile phones only can switch colors or graphics through software or console control.

9. Multiple groups of graphics and animations with different effects are built in, and users can set AUTO   Mode, Sound Active or DMX Mode.

10. The RGB laser module uses high-stability and long service life solid-state semiconductor laser diodes (Diode Solid-State Laser), which are more efficient and stable and can work normally at -30°C~40°C.

11. The machine is with a two-layer structure, dust and oil proof design, pollution-free optical path, small size and light weight.

12. Safety configuration: Laser single point protection setting (with on/off selection), after turning on, the laser light will be automatically turned off when a single point appears.

13. Application: Wedding, Banquet hall, Family party, Advertising lights, KTV, Bar, Stage, various entertainment venues.

Technical Specification

1.    Voltage: AC90~250V/AC, 50HZ/60HZ, rated power: 80W

2.    Laser lifespan: >10000 hours

3.    IP rate: IP51

4.    Working Environment: Indoor, -30 °C ~40 °C

5.    Working Modes: APP Control Mode, DMX512 (16CH/36CH), Sound Active (Multiple programs), AUTO Mode (Multiple programs)

6.  Interface: Wireless Bluetooth, 3 pins XLR jack for DMX

7.  DMX Mode: 16/36 channel control
